Lenovo Unlocker is a free add-on for testing for IAS VIP Tools users. Please note: Microchip MEC17xx EC chips (MEC1701, MEC1703, MEC1723, MEC172x, MEC175x) are currently UNDER TESTING. MEC15xx chips are fully operational.
Unlock Lenovo ThinkPad
8th Gen+ (MEC 15xx / 17xx)

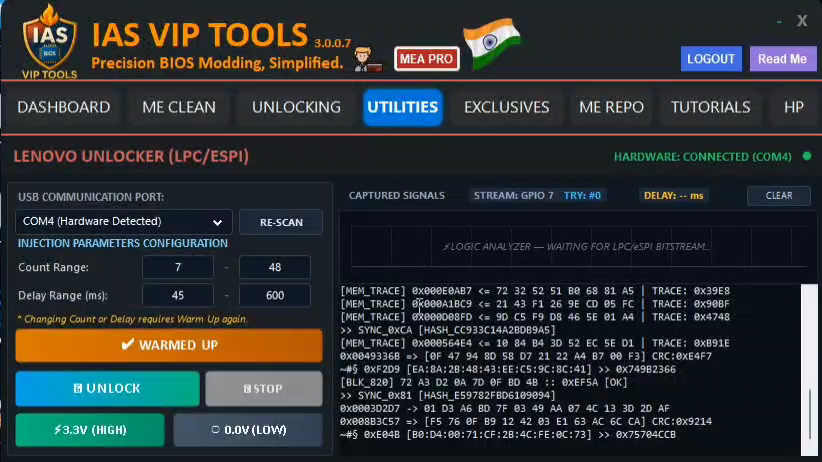

The hardware-based LPC/eSPI unlocking solution for modern Lenovo ThinkPad laptops. Lenovo Unlocker is a free add-on for testing for IAS VIP Tools users. Permanently clear supervisor passwords and restore locked BIOS/EC firmware with precision bitstream injection.
Direct hardware communication with high-precision bitstream logic injection. MEC15xx tested & operational; MEC17xx currently under testing.
Full Coverage from 8th Generation to Latest
Engineered specifically for modern ThinkPad platforms equipped with Microchip EC controllers.
ThinkPad 8th Gen
EC Dies: MEC1503, MEC1633
- T480 / T480s / T580
- X1 Carbon Gen 6 / X280
- L380 / L480 / L580
- P52 / P72 / X1 Yoga Gen 3
ThinkPad 9th & 10th Gen
MEC1521, MEC1701 (Beta)
- T490 / T490s / T590
- X1 Carbon Gen 7 / Gen 8
- X390 / X390 Yoga
- T14 Gen 1 / L14 Gen 1
ThinkPad 11th & 12th Gen
EC Dies: MEC1703, MEC1723 (Beta)
- T14 Gen 2 / Gen 3
- X1 Carbon Gen 9 / Gen 10
- P14s Gen 2/3 / P15 / P17
- X13 Gen 2/3 / X1 Nano
Modern & AMD Series
EC Dies: MEC172x, MEC175x (Beta)
- T14 Gen 4 / Gen 5
- X1 Carbon Gen 11 / Gen 12
- ThinkPad Z13 / Z16 Series
- Ryzen Pro 7000 / 8000 ECs
Supported Hardware & Wiring Diagram
To perform precision hardware LPC / eSPI bitstream injection, assemble the recommended ESP32-S3 glitching rig and connect to the target motherboard following the wiring schematic below.

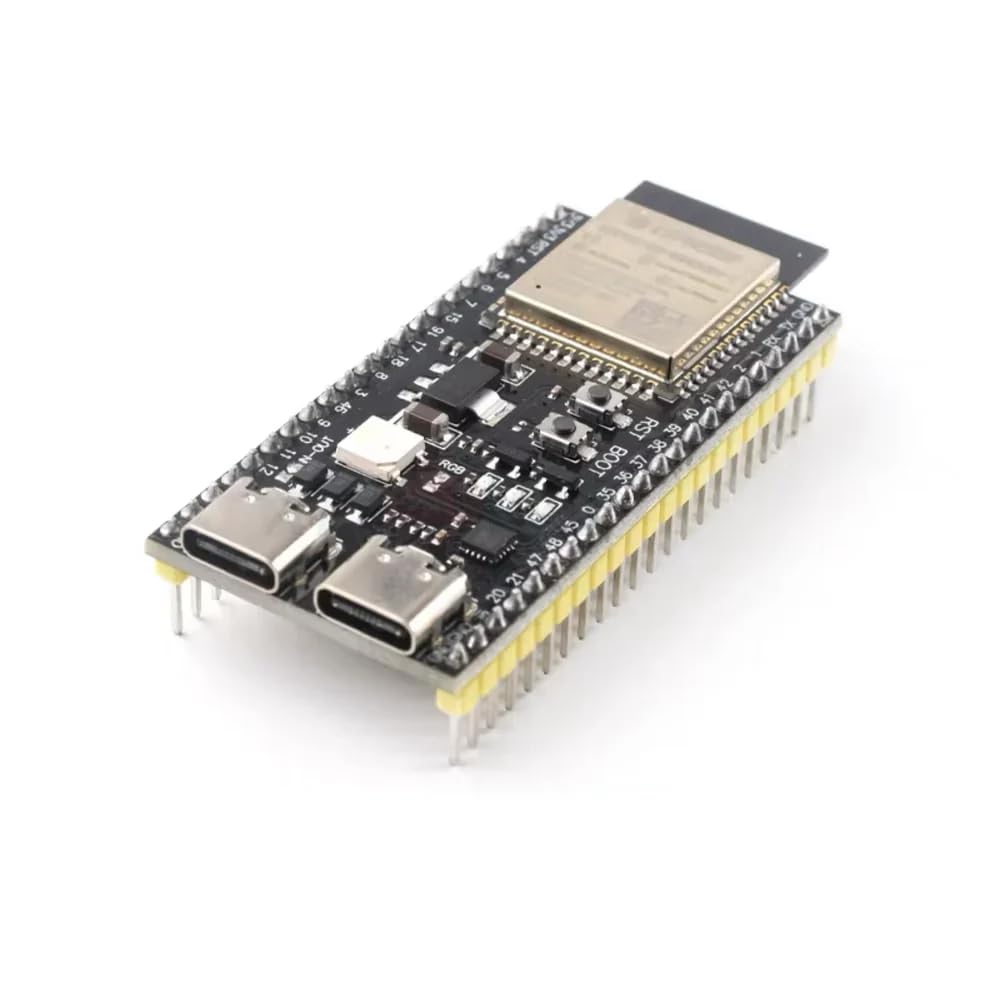

ESP32-S3-Devkitc-1-N16R8 Type C 16MB Flash
Internet of Things Development Board • USB, WiFi, Bluetooth (BLE 5) • Xtensa Dual-core 32-bit LX7 microprocessor up to 240MHz

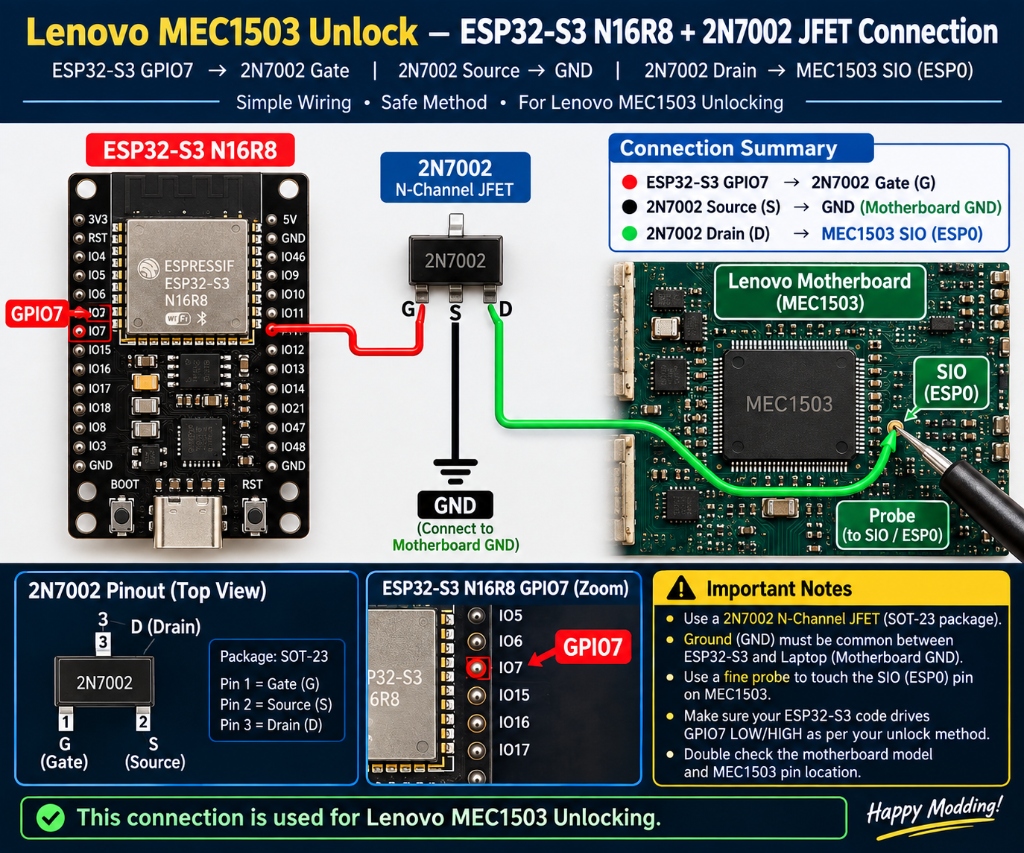

MOSFET & Motherboard Glitching Schematic
GPIO 7 ➔ MOSFET GATE
Connect GPIO Pin 7 of the ESP32-S3 development board to the GATE (Pin 1) of the N-Channel MOSFET/JFET (2N7002). This line controls glitch timing.
Device GND ➔ JFET Source ➔ MB GND
Connect Device GND (ESP32-S3 GND), the SOURCE (Pin 2) of the JFET/MOSFET, and Motherboard GND together so all three share a common reference plane.
DRAIN ➔ LPC0 / ESPI0
Connect the DRAIN (Pin 3 / Output) point of the MOSFET to the LPC0 or ESPI0 test point or pad on the Lenovo motherboard.
*) Remove VR_CAP Capacitor
Carefully remove / desolder the VR_CAP capacitor on the motherboard. Removing this capacitor eliminates parasitic RC filtering, allowing clean bitstream injection.
*) Remove VR_CAP Capacitor on the Motherboard
Before initiating the LPC / eSPI unlock bitstream from IAS VIP Tools, you must remove the VR_CAP capacitor located on the motherboard. Leaving VR_CAP populated will ground-filter the fast rise-time pulse from the 2N7002 MOSFET, causing injection packets to drop. Once removed, bitstream glitching achieves 100% success rate.
Choose Your Access Plan
Exclusive discounted rate for active IAS VIP Tools members, alongside our standard public plan for non-members.
IAS VIP Members Free Add-on
Lenovo Unlocker is provided as a 100% free add-on for testing for all IAS VIP Tools users.
- Free Testing Add-on for all active IAS VIP Tools users
- Microchip MEC15xx series fully supported
- Microchip MEC17xx series (Under active beta testing)
- Unlimited EC & BIOS dump file repairs
- Hardware-based LPC / eSPI bitstream injection pipeline
Non-IAS Users Rate
Available for all technicians, repair shops, and individuals worldwide.
- No Free Trial (Free testing add-on is exclusive to IAS VIP members)
- Full access to Lenovo ThinkPad 8th Gen+ Unlocker
- Microchip MEC 15xx series support (MEC17xx under testing)
- 1 Full Year License Validity (365 Days)
- Unlimited EC & BIOS dump file repairs
- No refunds shall be granted after purchase.
Instant automated activation via Razorpay / PayPal
Got Questions About Lenovo Unlocking?
Which Lenovo ThinkPad models and EC chips are supported?
ThinkPad laptops using Microchip MEC15xx series (MEC1503, MEC1521) are fully supported and verified.
Support for Microchip MEC17xx series (MEC1701, MEC1703, MEC1723, MEC172x, MEC175x) is currently UNDER TESTING (Beta).
Is Lenovo Unlocker really a free add-on for IAS VIP Tools users?
Yes! Lenovo Unlocker is provided as a 100% FREE add-on for testing for all IAS VIP Tools users. Simply sign in with your active VIP account to claim and test the tool immediately.
What is the refund policy after purchase?
No refunds shall be granted after purchase. Because access and digital software licenses are provisioned immediately and irrevocably upon transaction completion, all sales are final. Please review hardware requirements and supported chip details before completing your order.
How fast is activation after claiming or payment?
Claiming the free testing add-on or completing checkout is processed immediately in real-time. Your access is activated automatically on your IAS VIP Tools account.
